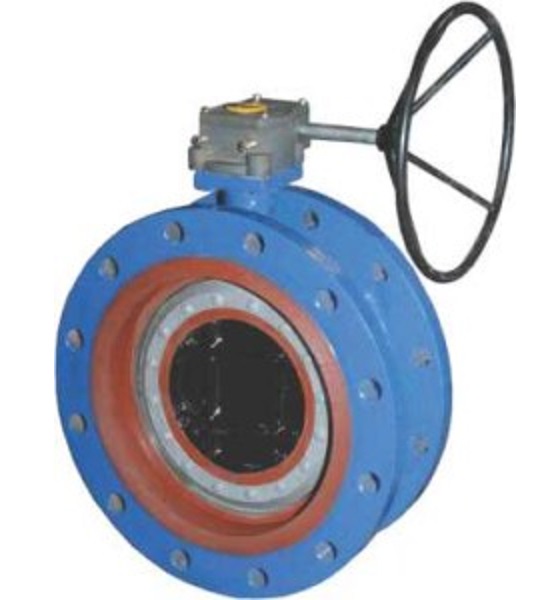

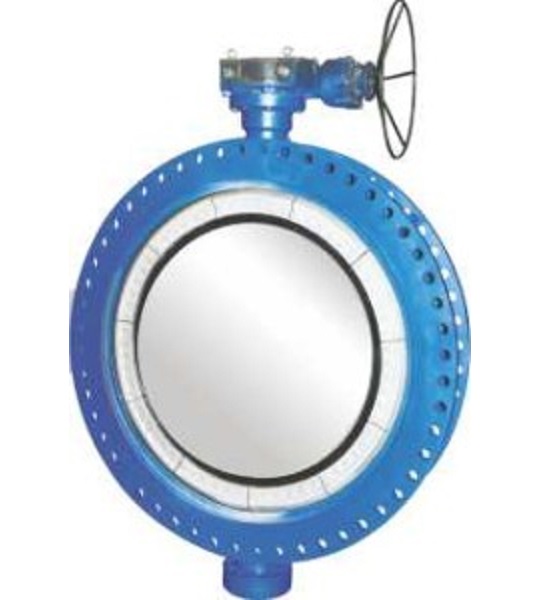

DOUBLE FLANGE BUTTERFLY VALVE

Category: Double Off-Set Disc (Butterfly Valve)

BODY
C.I - D.I - C.S - CF8 - CF8M
BODY SEAT
SS 304 - SS 316
DISC
C.I - D.I - C.S - CF8 - CF8M
MFG STD
BS EN-593 (BS 5155) - AWWA C-504 - API 609 - IS 13095
INSP & TEST STD
EN 12266-1 - AWWA C-504 - API 598
SHAFT
AISI 410 - AISI 304 - AISI 316
BEARING BUSH
PTFE - GUN METAL
ENDS
DOUBLE FLANGED END TO IS 1538 - ASME B 16.5 (150#)
B 16.47 (SERIES-A/B) - BS 4504 - IS 6392
OPERATION
FLOW-CONTROL LEVER - GEAR - PNEUMATIC - OPERATED - ELECTRICAL - ACTUATED
HYD-TEST PRESSURE
BODY : 225 Psig (16 Kg/Cm ²)
SEAT : 165 Psig (11.5 Kg/Cm ²)
SIZE RANGE
50 MM TO 1800 MM
